150 minutes for long-range operations
15kg load for diverse mission requirements
Twin-tail boom design, 80km secure datalink, IP54 protection
Tool-free assembly in under 3 minutes

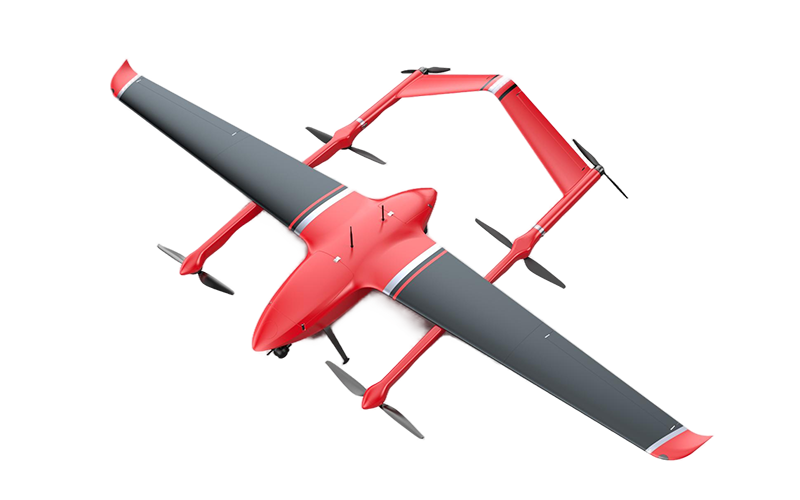

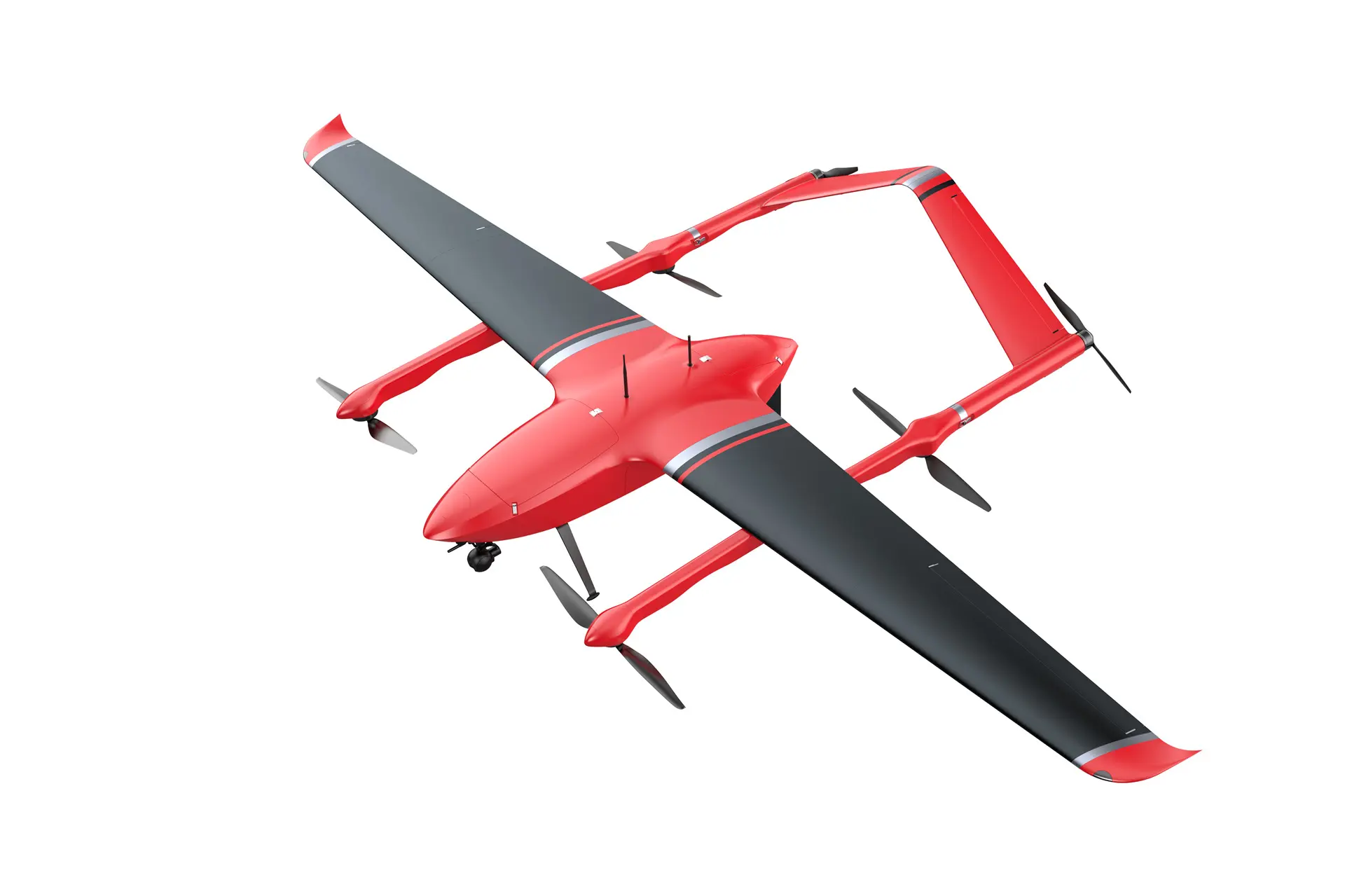

The Griflion M11 features a twin-tail boom platform, ensuring superior flight stability while supporting heavy payloads for demanding missions.
The Griflion M11 features a detachable, quick-swap payload design with a rotating camera system, supporting single, dual, or triple-sensor pods for diverse mission needs.
The Griflion M11 restores critical connectivity through airborne relays, ensuring rapid communication recovery in disaster-stricken areas.
The Griflion M11 excels in material transport, delivering critical supplies reliably across diverse terrains for mission-critical operations.
The Griflion M11 offers fully autonomous VTOL flight with exceptional terrain adaptability and superior maneuverability, ensuring reliable performance in diverse environments.
| Material | Composite materials |
| Case Dimensions | Case 1: 1840×1010×740 mm Case 2: 1840×470×1110 mm |
| Max Dimensions (with blades) | Wingspan 4962 mm, Length 2608 mm, Height 952 mm |
| Body Weight | 29.5 kg (excluding battery and payload) |
| Empty Weight | 50 kg |
| Max Payload | 15 kg |
| Endurance (No payload) | ≥240 minutes |
| Endurance (5kg payload) | ≥150 minutes |
| Max Wind Resistance | Level 7 (fixed-wing mode) |
| Image Transmission Frequency | 1.4 GHz & 450 MHz |
| Image Transmission Range | 80 km |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Protection Rating | IP54 |
| Max Altitude | 4500 m |
| Cruise Speed | 25 m/s |
| Battery | 30,000 mAh × 8, ≥100 cycles, supports dual-battery charging with overcharge/over-discharge protection |
| Video Transmission Resolution | 1080P@30fps |
| Navigation | BeiDou positioning |
What is the payload capability and maximum flight endurance of the Griflion M11?
The Griflion M11 has a maximum payload capacity of 15 kg. Its flight endurance is ≥240 minutes with no payload, and ≥150 minutes with a 5 kg payload.
What are the wind resistance and environmental protection ratings?
The drone supports a Level 7 max wind resistance in fixed-wing mode and features an IP54 protection rating, operating in temperatures from -20°C to 60°C.
What is the image transmission range and video resolution?
It features an image transmission range of up to 80 km at 1.4 GHz & 450 MHz frequencies, delivering a video transmission resolution of 1080P@30fps.
How long does it take to assemble the Griflion M11 system?
The Griflion M11 is engineered for quick deployments, supporting tool-free assembly that can be completed in under 3 minutes.
What type of battery and charging system does it utilize?
It is powered by 8 units of 30,000 mAh batteries (supporting ≥100 cycles) and features a system that supports dual-battery charging with overcharge and over-discharge protection.
What positioning and navigation technology does the drone use?
The drone features fully autonomous VTOL flight capabilities integrated with precise BeiDou positioning for reliable navigation.
