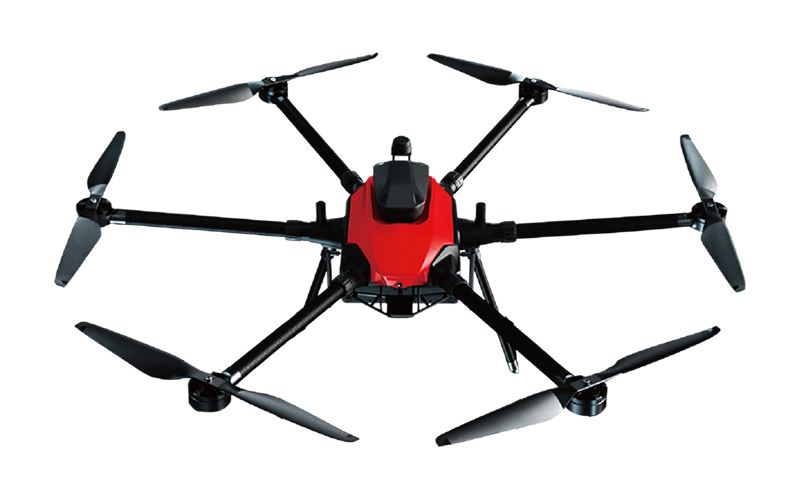

Best MMC Skylle II hexacopter drone for public safety, mapping, inspection Manufacturers, Product

Engineered for Power, Precision, and Endurance Redefine Aerial Performance with 15kg Payload and 100-Minute Flight Time

Product Description

IP54-rated, operates in extreme temperatures.

Quick-swap RTK, LiDAR, and multispectral sensors.

AI-powered features and seamless Hangar integration.

Long flight times with heavy payload capacity.

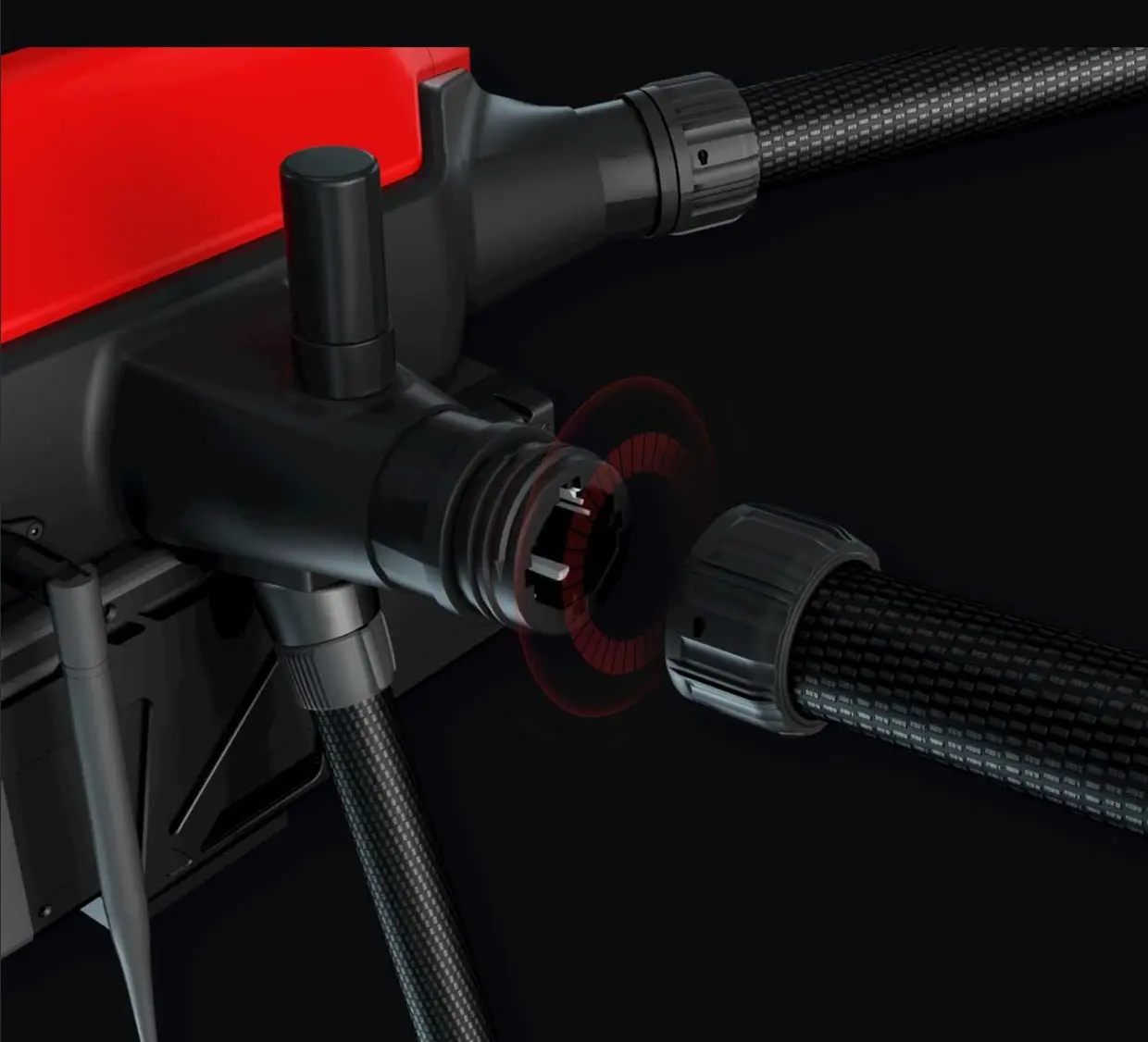

The Skylle Ⅱ drone’s quick-release arm design enables fast assembly and payload swapping. Its standardized plug-and-play interface ensures seamless arm and payload interchangeability, ideal for surveying, inspections, and emergency response.

The Skylle Ⅱ drone’s Super Zoom feature redefines aerial imaging with its advanced optical system. This cutting-edge technology enables operators to capture crystal-clear, high-resolution images and videos from significant distances, making it ideal for infrastructure inspections, wildlife monitoring, and search and rescue operations. With intelligent stabilization and AI-enhanced focus, the Super Zoom ensures precise, detailed visuals even in challenging conditions, enhancing mission efficiency and accuracy.

Skylle Ⅱ Design and Zoom Feature

The quick-swap payload system allows operators to switch between payloads in 60 seconds or less, minimizing downtime and enabling rapid adaptation to diverse mission requirements. Whether you’re deploying RTK for precision navigation, LiDAR for 3D mapping, or multispectral sensors for agriculture, the Skylle Ⅱ Series delivers unmatched versatility.

The Skylle Ⅱ drone supports up to 5 simultaneous payloads, enabling seamless adaptation to diverse applications like surveying, infrastructure inspections, and firefighting and power line patrols. This versatility ensures top performance across critical scenarios.

Quick-swap Payload System
Payload Options 1 Payload Options 2 Payload Options 3
Payload Options 4 Payload Options 5 Payload Options 6
Payload Configuration details

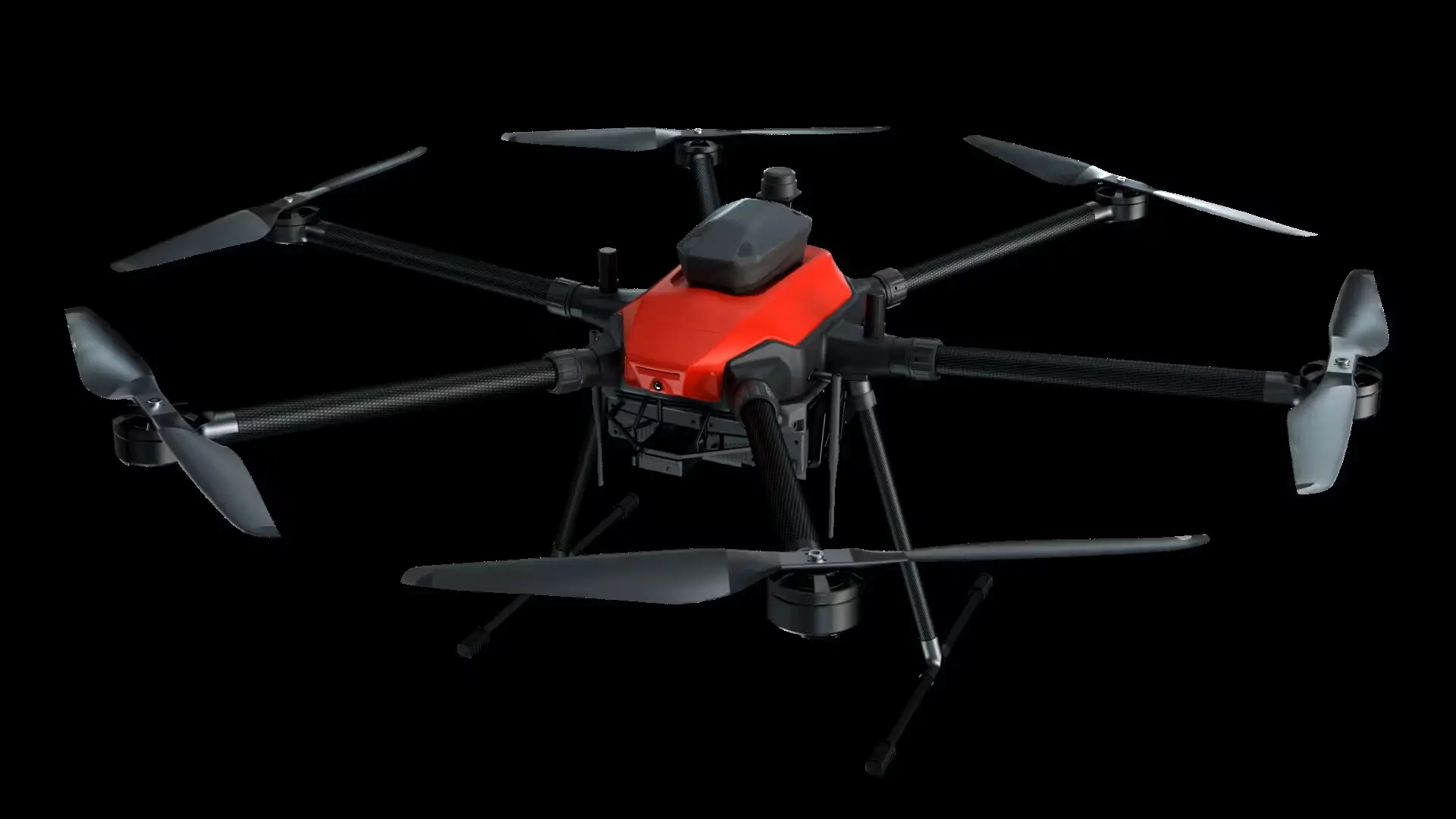

The Skylle Ⅱ drone features advanced thermal imaging and intelligent tracking, enabling precise detection and real-time monitoring in low-visibility conditions. Ideal for search and rescue, wildlife monitoring, and security patrols.

Thermal Imaging & Tracking
Technical Specifications
Model Hexacopter
Material Carbon fiber, magnesium aluminum alloy, engineering plastics
Wheelbases 1650mm
Packing Dimension (Fuselage) 820*750*590mm
(Arm) 1090*450*350mm
Unfold max. dimension (Without paddle) 1769*1765*560mm
Unfold max. dimension (With paddle) 2190*2415*560mm
Body weight 9.15kg (Without battery and mount)
Unladen weight 18.2kg
Max. load 10kg
Endurance 80min @ no load; 60min @ 1kg; 55min @ 3kg;
48min @ 5kg; 40min @ 8kg; 36min @ 10kg
Automatic obstacle avoidance function 360° omnidirectional obstacle avoidance (horizontal)
Max. wind resistance 12m/s (Class 6)
Frequency of image transmission 2.4GHz
Encryption method AES256
Mapping distance 20km
Operating temperature -20℃~60℃
Operating humidity 10%~90% non-condensing
Protection level IP54
Electromagnetic interference 100A/m (Industrial frequency magnetic field)
Elevation limit 5000m
Cruising speed 0~15m/s
Max. flight speed 18m/s
Max. climb speed Default 3m/s (max. 5m/s)
Max. descent speed Default 2m/s (max. 3m/s)
Smart Battery 22000mAh*2

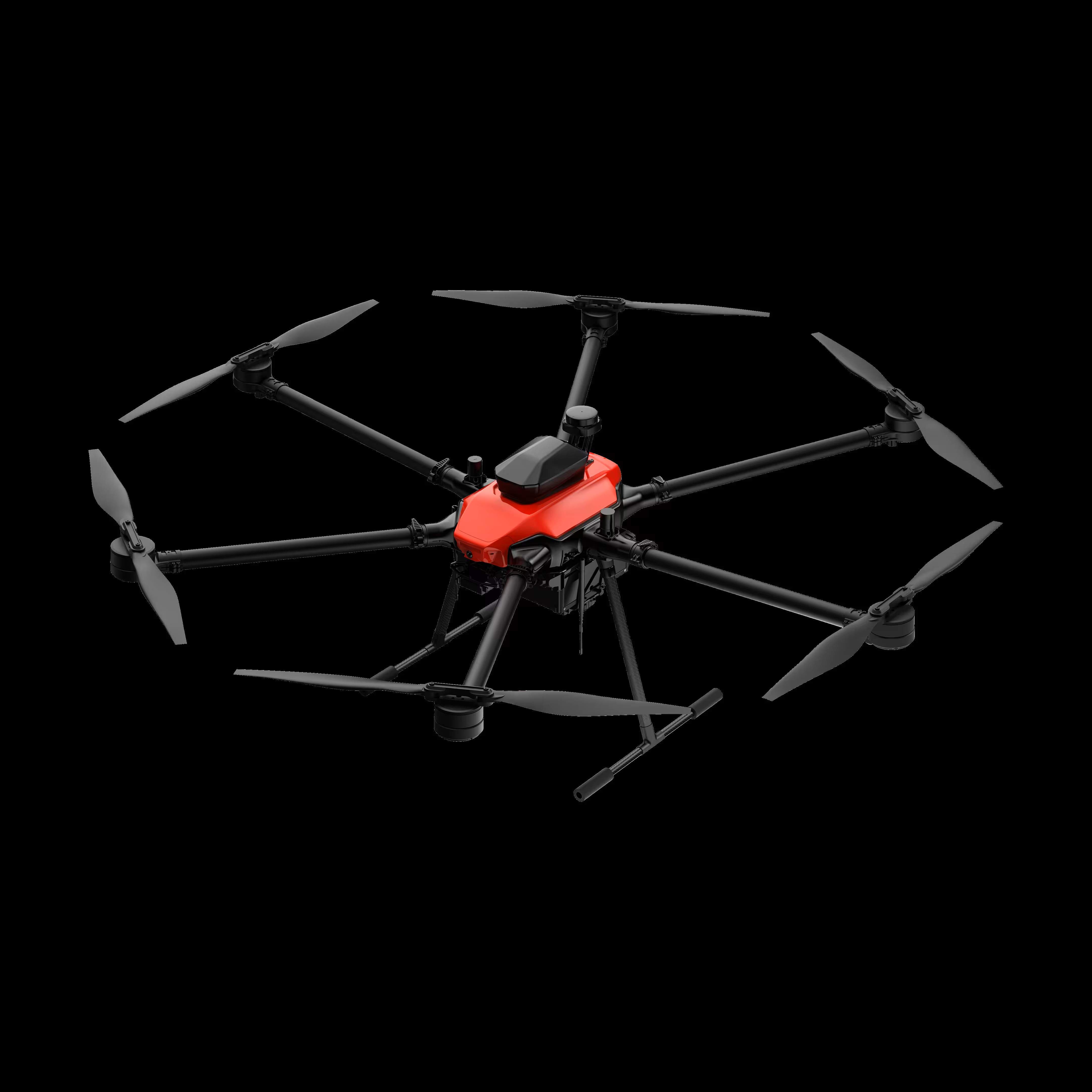

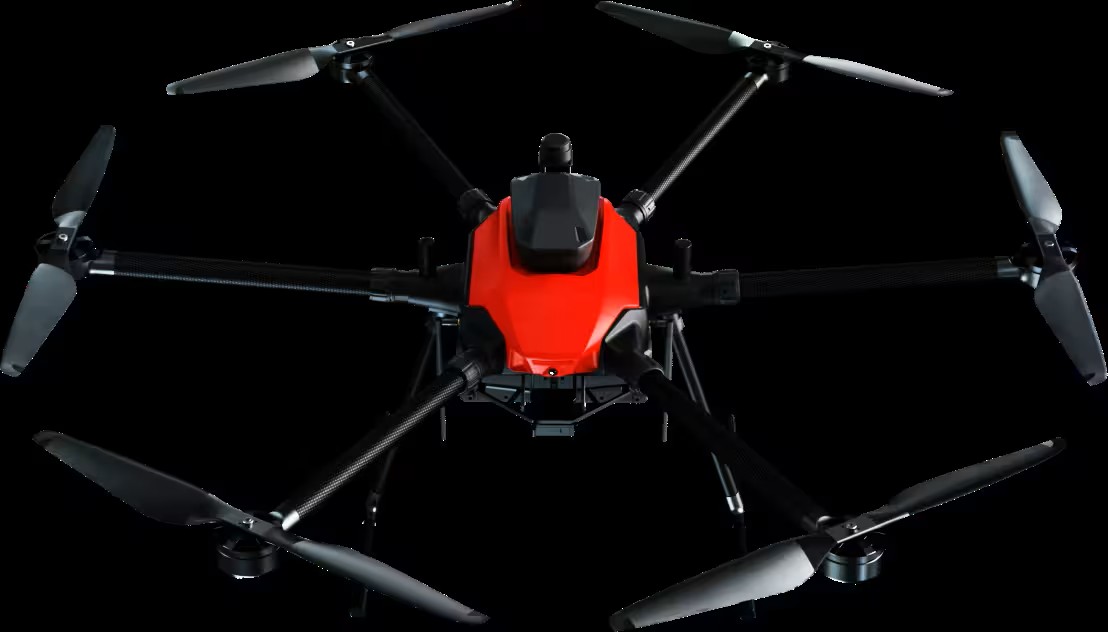

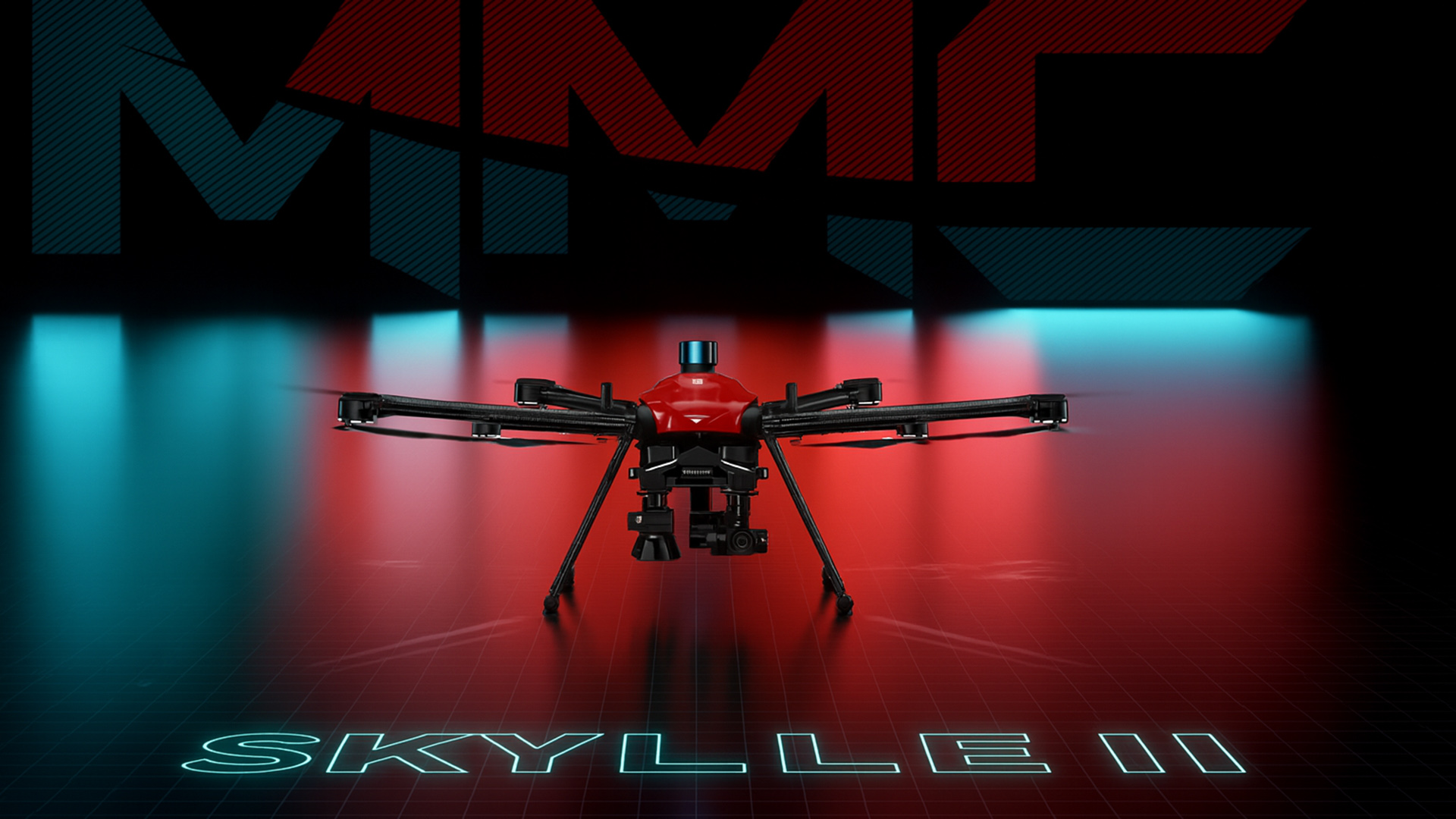

Structure Detail 1 Structure Detail 2 Structure Detail 3
Frequently Asked Questions
What is the protection level and weather capability of the Skylle Ⅱ drone?
The Skylle Ⅱ drone features an IP54 protection level and can operate safely in extreme temperatures ranging from -20℃ to 60℃ with a max wind resistance of up to 12m/s (Class 6).
How long is the maximum flight time, and how does payload weight affect it?
The drone achieves a maximum flight time of 80 minutes with no load. With payloads, the endurance is 60 minutes at 1kg, 48 minutes at 5kg, and 36 minutes at the maximum 10kg load capacity.
How many payloads can the Skylle Ⅱ carry simultaneously?
It supports up to 5 simultaneous payloads, allowing operators to deploy multiple sensors like RTK, LiDAR, thermal imaging cameras, and multispectral sensors on a single flight.
What is the maximum transmission range for mapping?
The Skylle Ⅱ features a 2.4GHz transmission system that supports mapping and control distances of up to 20km, secured with robust AES256 encryption.
Does the drone support obstacle avoidance for safety?
Yes, the Skylle Ⅱ drone is equipped with an automatic 360° omnidirectional horizontal obstacle avoidance system, ensuring optimal safety during inspections and mapping tasks.
Is the payload interface standardized for quick swaps?
Absolutely. The drone features a standardized quick-release arm and plug-and-play payload interface, enabling operators to assemble the drone or switch payloads in 60 seconds or less.
