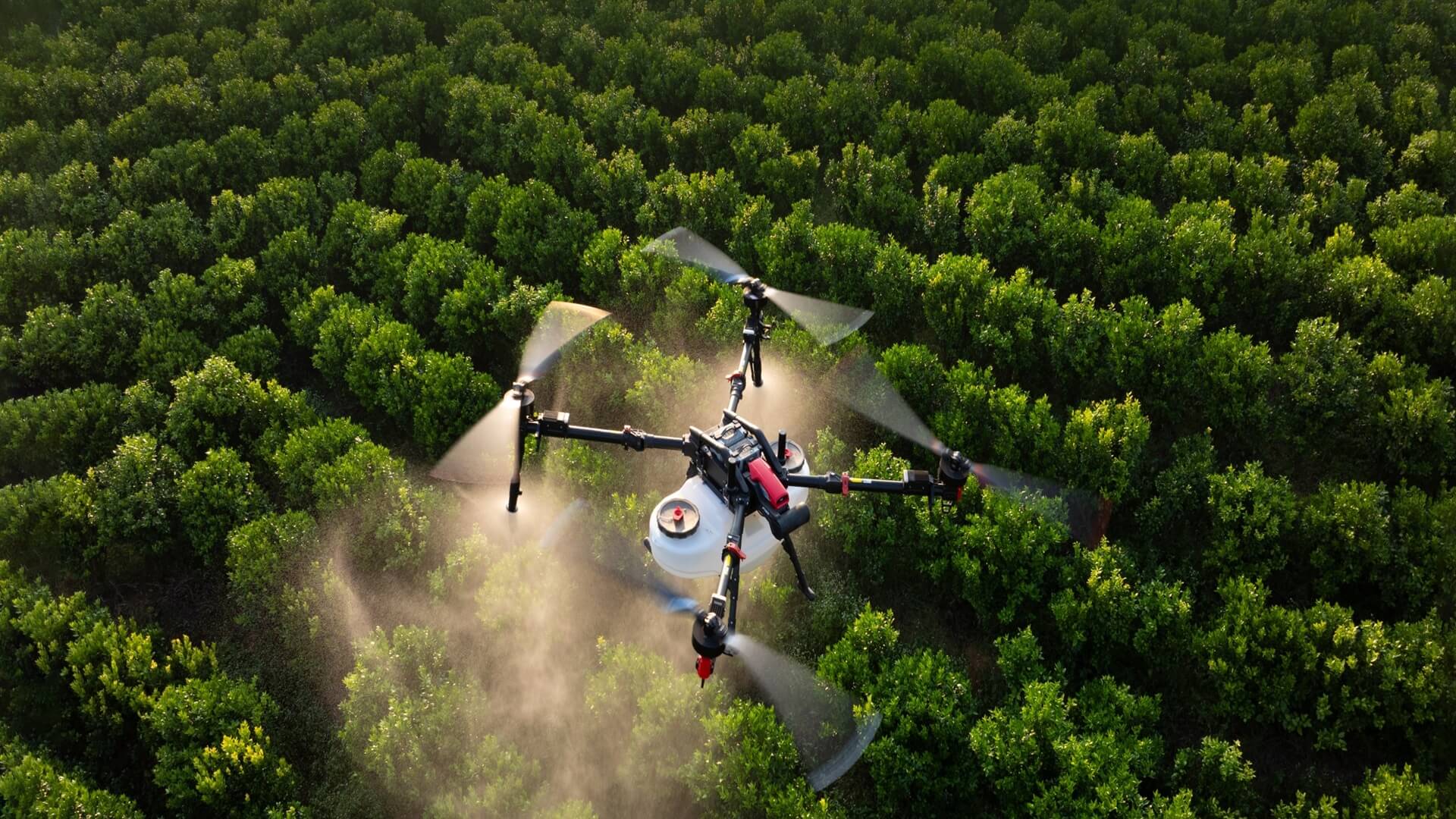

Custom XAG P150 Pro 2025 Model Agricultural Drone Manufacturers, Factories

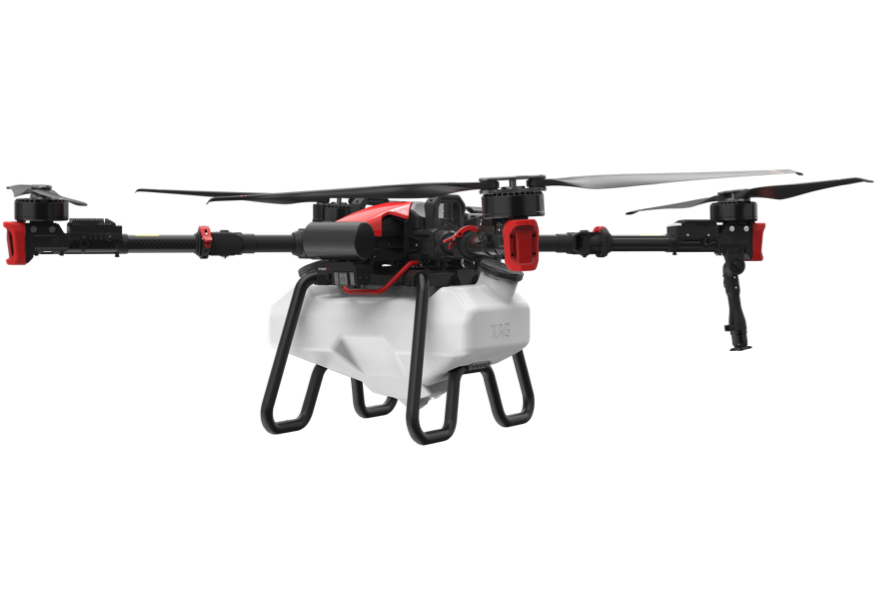

XAG P150 Pro 2025 Agricultural Drone integrates 4 core functions: spraying, sowing, transporting & aerial surveying. With 80kg max payload, 32L/min spray flow & 300kg/min feeding speed, it enables efficient farm operations. Equipped with 4D imaging radar & SuperX 5 Ultra system, it supports fully autonomous flight, precise obstacle avoidance & 3D route planning, adapting to farmland, orchard, mountainous areas.

Send Inquiry

Product Description

Boasts 80kg max payload, 300kg/min feeding speed, and 13.8m/s flight speed, slashing task time and boosting large-scale farm productivity significantly.

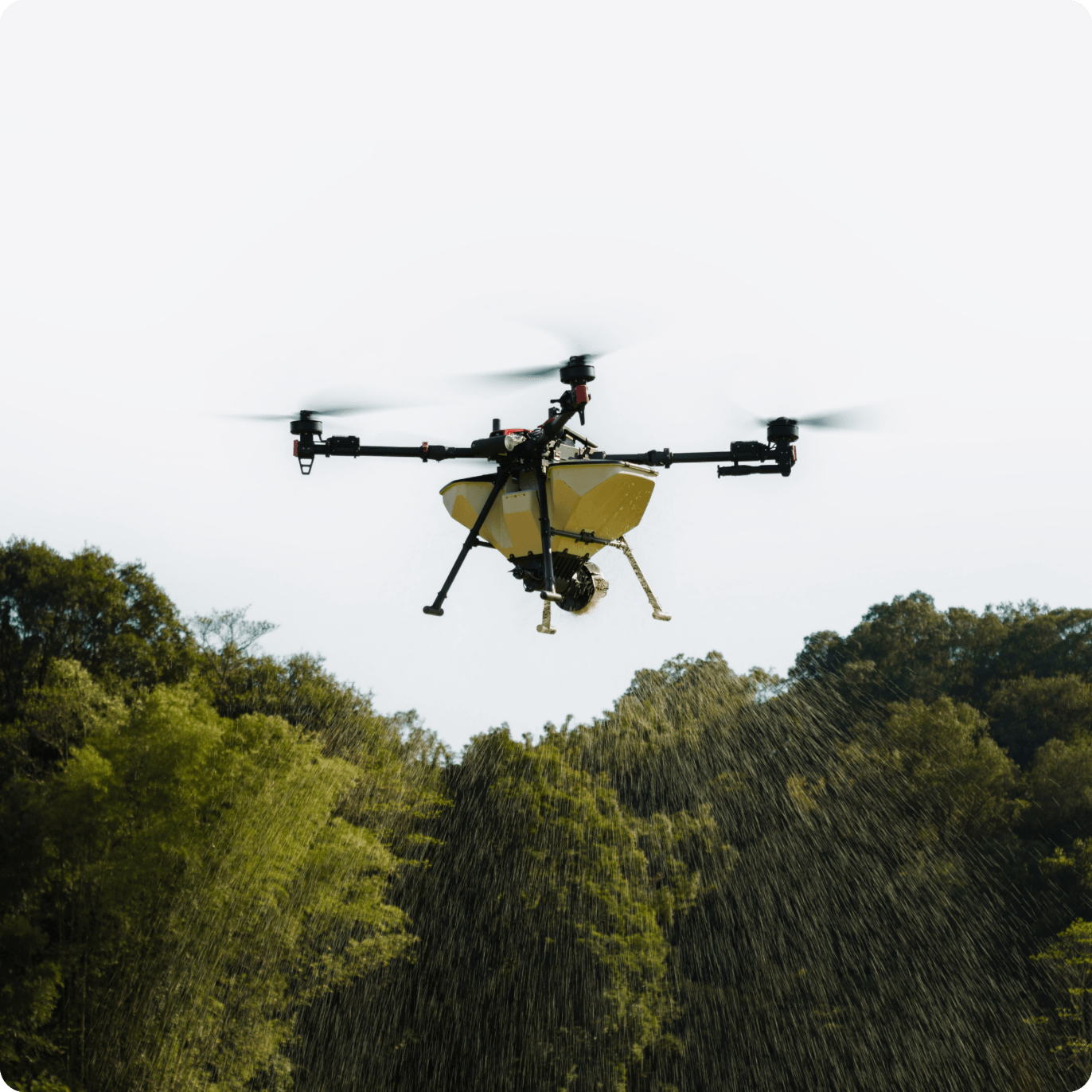

Integrates spraying, sowing, transporting, and aerial surveying in one unit, eliminating the need for multiple devices and streamlining farm operations comprehensively.

Features IPX6K waterproof rating, quick task system switching, and multiple charging solutions, adapting to diverse crops, terrains, and operational demands reliably.

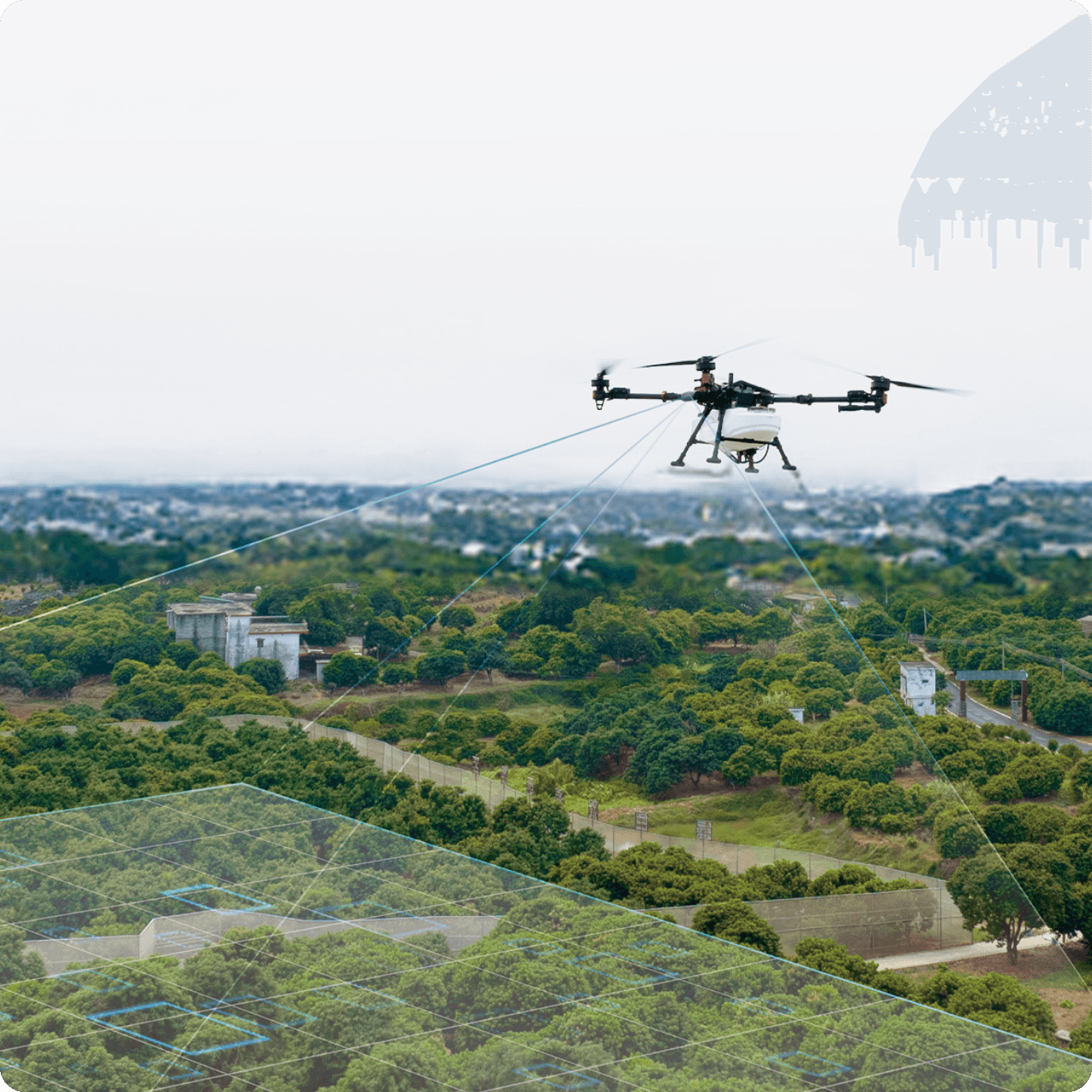

Equipped with 4D imaging radar, SuperX 5 Ultra system, and 3D route planning, ensuring precise, obstacle-free operation even in mountainous or no-network areas.

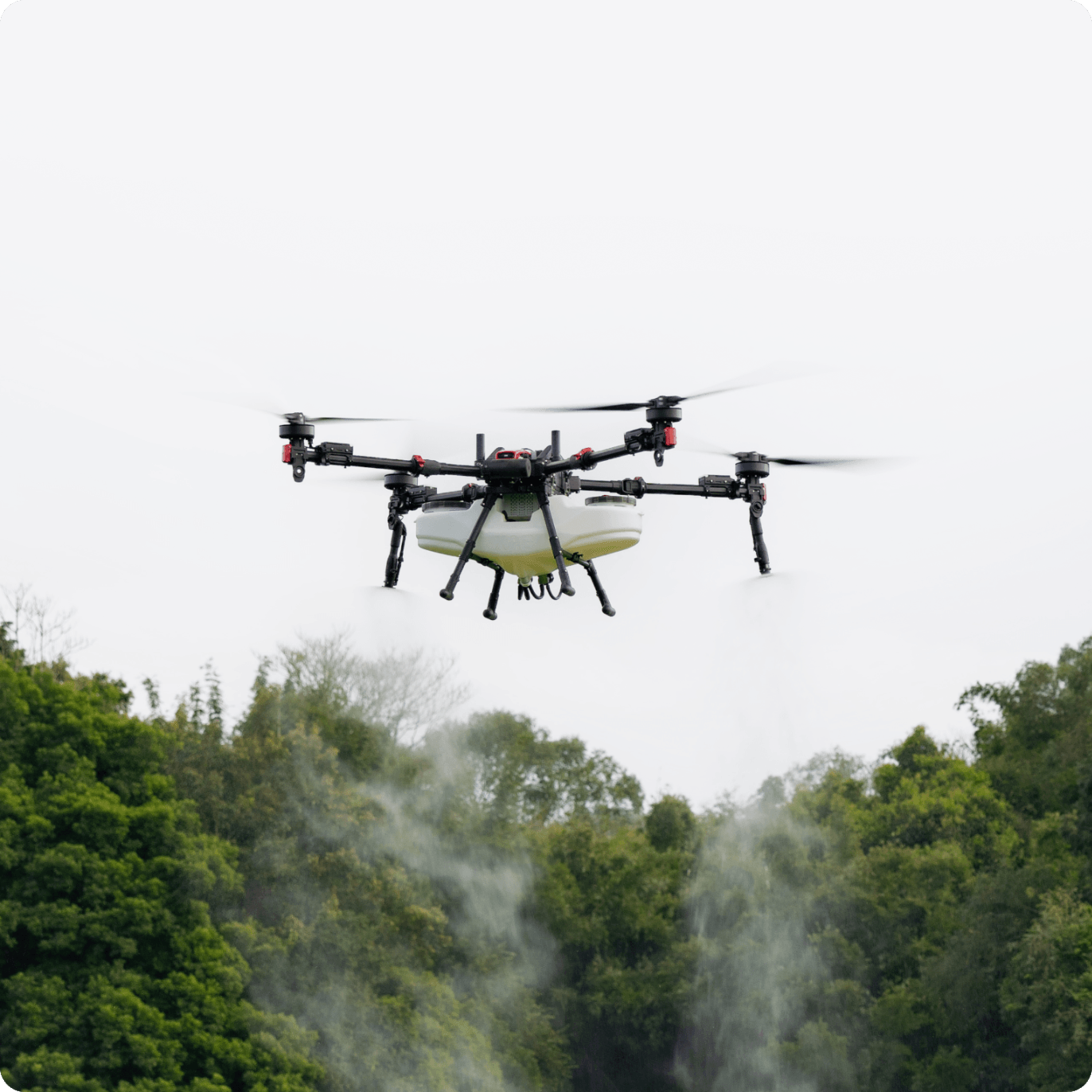

With a 32L/min maximum spray flow, the P150 Pro 2025 achieves up to 10m spray width, slashing field spraying time by 40% compared to standard agricultural drones—perfect for high-volume farmland and orchard protection tasks.

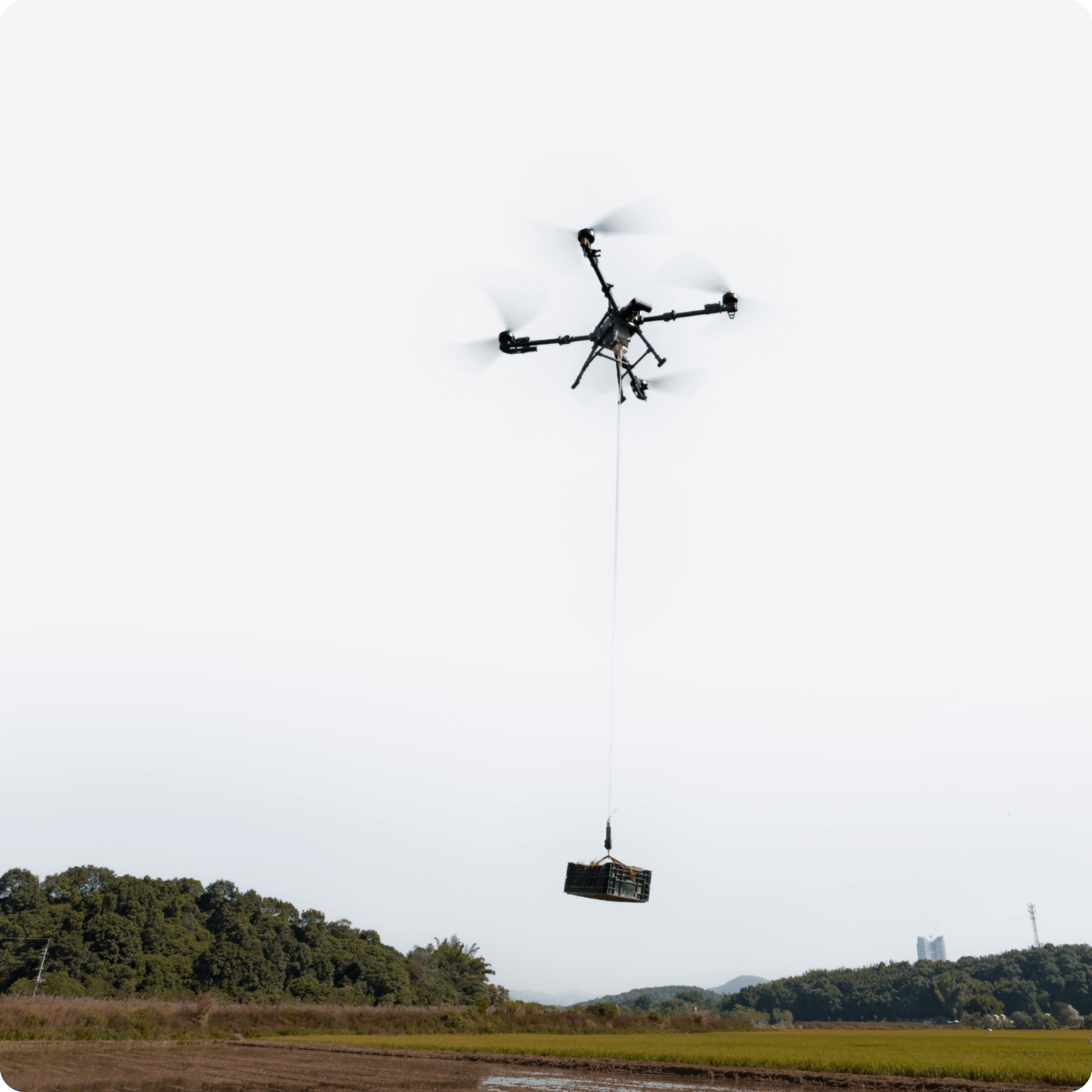

Featuring two loading modes, brand-new operational functions and control methods, it breaks through terrain and distance constraints — enabling quick loading/unloading and high-efficiency transportation.

Boasting quick-load compatibility and an 80kg max payload, the P150 Pro 2025 slashes transport time for farm materials/harvests across rugged, hard-to-reach terrains—delivering time-saving, reliable logistics for agricultural operations.

The P150 Pro enables targeted aerial operations across wheat, vegetables, cotton, and fruit trees, with customized per-mu usage, flight speeds, and spray widths tailored to each crop type—delivering precise, scenario-matched efficiency for varied farm protection tasks.

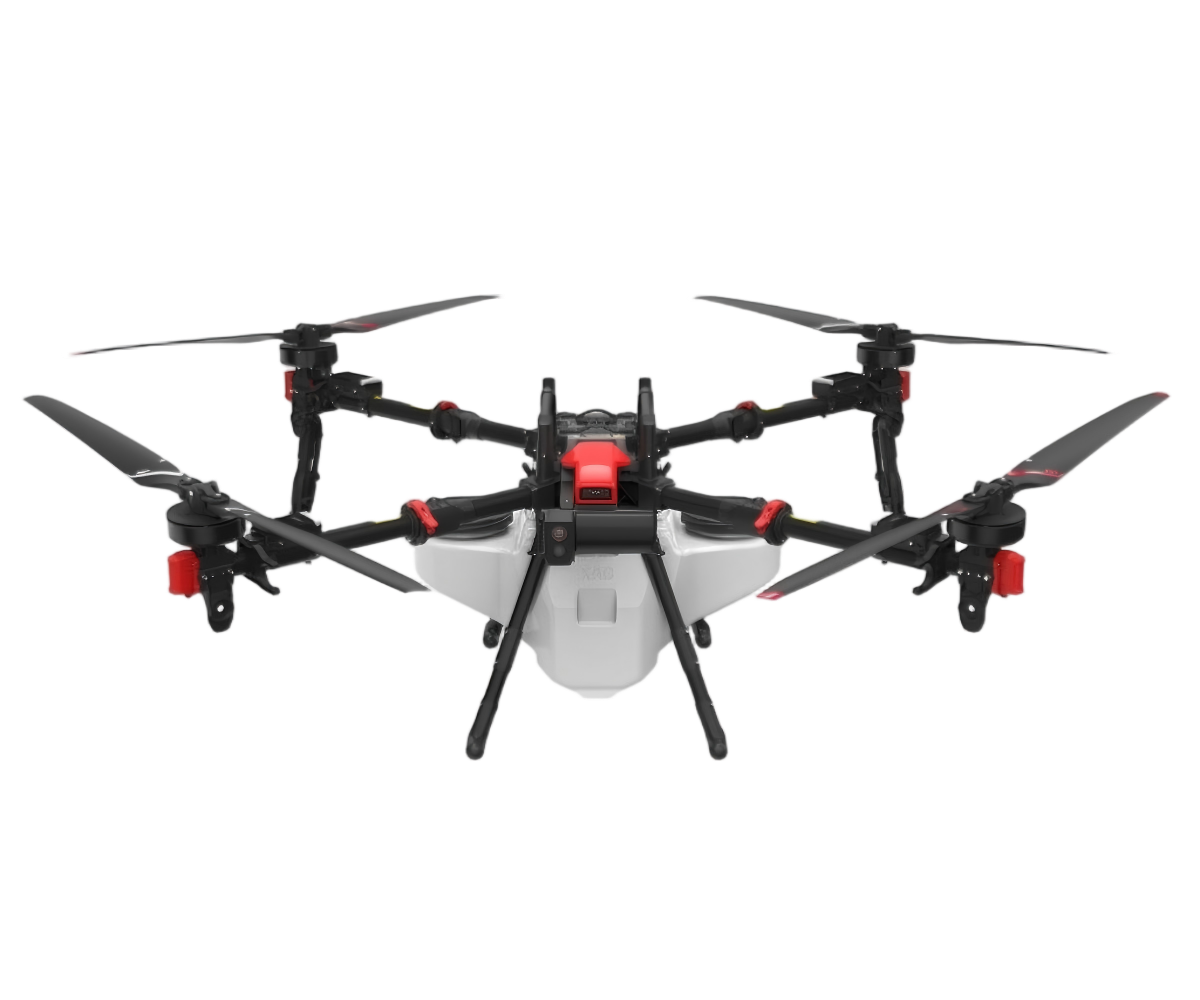

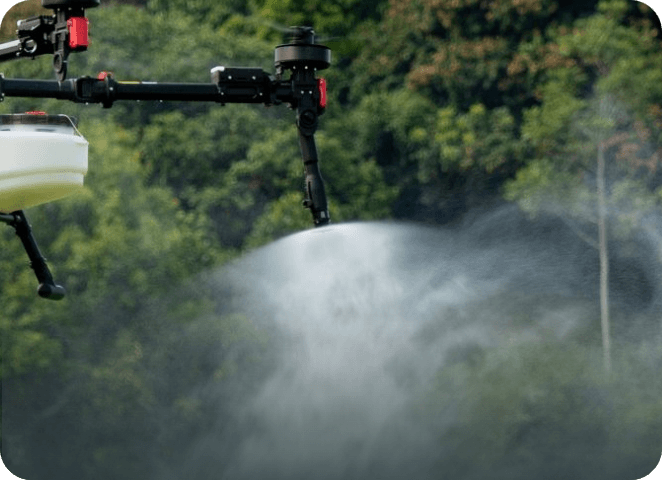

Featuring a next-generation flexible impeller pump and intelligent centrifugal atomizing nozzle — paired with the quadrotor’s powerful downward-pressure wind field — the RevoSpray 5 effortlessly handles both fine, precise small-droplet spraying and strong, penetrating high-volume application.

Specification	Details
Unfolded (propellers + arms)	3250×3254×765 mm
Folded (propellers folded, arms unfolded)	1798×1807×765 mm
Fully folded	1057×1016×765 mm
Empty Weight (with battery)	56 kg (RevoSpray 5) / 60 kg (RevoCast 5, no spray bars)
Max Takeoff Weight	136 kg (spraying) / 140 kg (spreading, no spray bars)
Protection Rating	IPX6K
Max Takeoff Altitude	2000 m (efficiency reduced above 2000 m)
Max Flight Speed	13.8 m/s
Hover Accuracy (GNSS available)	±10 cm (horizontal/vertical, RTK enabled) / ±0.6 m (horizontal)/±0.3 m (vertical, RTK disabled)
Max Flight Height	30 m
Operating Temperature	0 ~ 40 °C
Tank Capacity	75 L
Max Flow Rate	32 L/min (dual pumps)
Droplet Size	60 ~ 400 μm
Spray Width	5 ~ 10 m

Frequently Asked Questions (FAQ)

What is the maximum payload and feeding speed of the drone?

The drone features a maximum payload capacity of 80 kg and can achieve a feeding speed of up to 300 kg/min, making it highly efficient for agricultural tasks.

What functions are integrated into this single drone unit?

This versatile unit integrates spraying, sowing, transporting, and aerial surveying into one system, eliminating the need to buy and manage multiple devices.

How is the drone protected against water and environmental hazards?

It features an IPX6K waterproof rating, ensuring strong resistance to water entry, which allows it to adapt to diverse terrains and weather conditions reliably.

How does the drone perform in mountainous or no-network areas?

Equipped with 4D imaging radar, the SuperX 5 Ultra system, and 3D route planning, the drone operates with precise obstacle-free navigation even in rugged terrain or areas with zero network connectivity.

What are the spray flow capacity and width specifications?

The drone delivers up to a 32L/min maximum spray flow rate and a spray width of 5 to 10 meters, reducing field spraying time by up to 40% compared to standard drones.

What types of crops are compatible with the targeted flight parameters?

It supports customizable per-mu usage, flight speeds, and spray widths tailored for crops such as wheat, vegetables, cotton, and fruit trees to ensure precise and efficient protection tasks.
