Users can customize the expected landing battery level. The UAV calculates the optimal return timing in real-time based on current battery levels and flight status, ensuring it lands with a battery level close to the user-defined threshold.
When operating in non-GNSS environments, the UAV activates landing protection, automatically descending from its current position to ensure safety.
In case of an emergency, you can switch the remote controller to M mode at any time to immediately take manual control, ensuring flight safety.
If signal between the UAV and the ground station is interrupted, the loss-of-connection protection activates. If GNSS signals are available, the UAV initiates automatic return-to-home.
The eVTOL features multi-level redundancies across key components (batteries, sensors, communication buses) and autonomous mode switching, ensuring stable flight and reliable performance even in complex environments.
Automatically performs a system check before takeoff, ensuring every flight is safe and reliable.
The UAV can lock on to its targets and flexibly adjust its flight path. Supports multiple tracking modes.
Supports takeoff and landing on moving platforms.
Easily return to home via the Home button. Convenient Storage: Quickly organize after flight, easy to store and ready for the next use.
| Specification | Details |
|---|---|
| Type | Next-Gen Tilt-Rotor eVTOL (Vertical Takeoff & Landing) UAV |
| Dimensions |
3025.7 × 4566 × 823.6 mm (with propellers) 2735 × 4566 × 823.6 mm (without propellers) |
| Weight | 29 kg (incl. batteries, propellers, excl. gimbal) |
| Max Payload Capacity | 10 kg (extra payload weight) |
| Max Flight Time |
270 min (empty payload) 210 min (with DG-T5 gimbal payload) |
| Max Flight Mileage | 220 km (with DG-T5 gimbal payload) |
| Max Horizontal Speed | 126 km/h (35 m/s) |
| Max Wind Resistance | 12 m/s (Level 6 wind in fixed-wing mode) |
| Max Service Ceiling | 5000 m above sea level |
| Operating Temperature | -20°C to 50°C |
| IP Rating | IP45 |
| GNSS Support | GPS + Galileo + BDS + GLONASS |
| Max Signal Range | 60 km (control & video transmission) |
| Deployment Time | ≤10 minutes from transport to takeoff (quick-release assembly) |

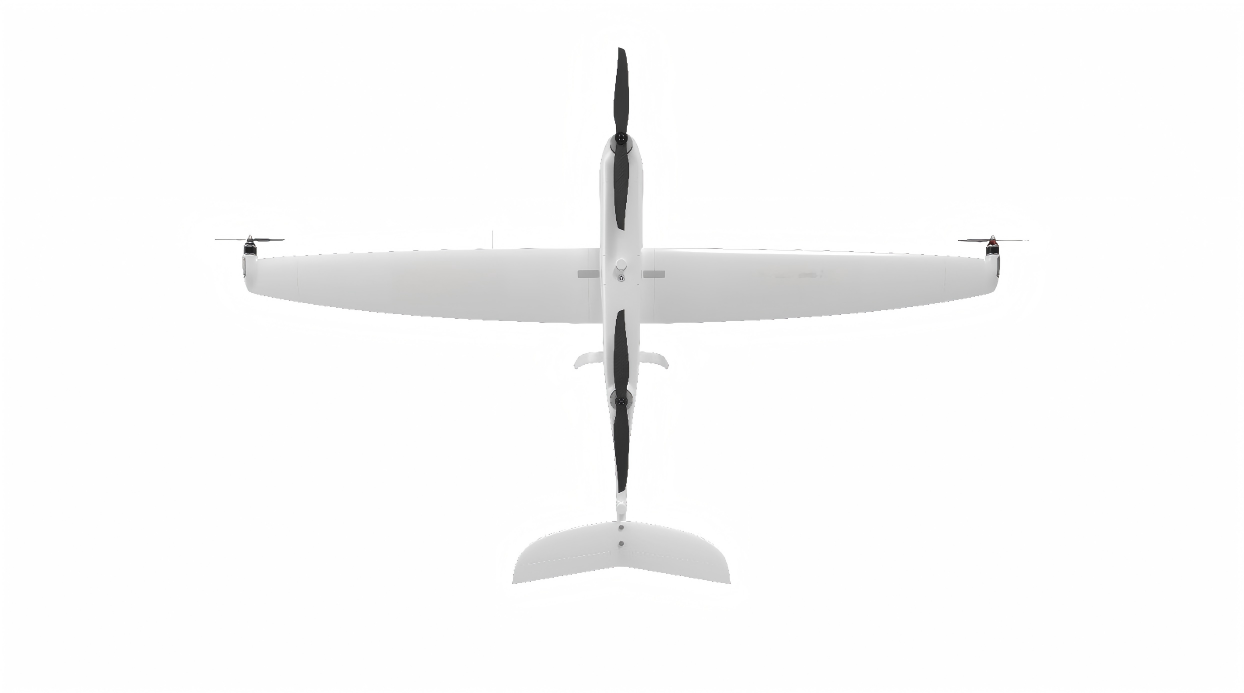

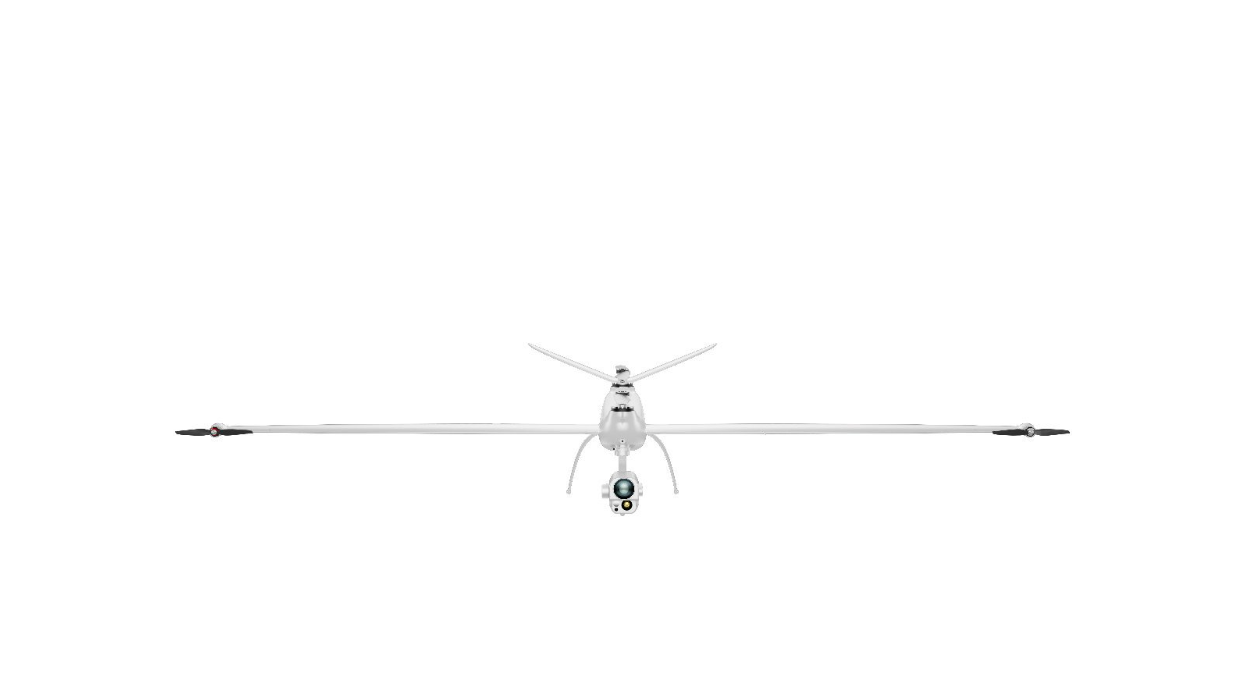

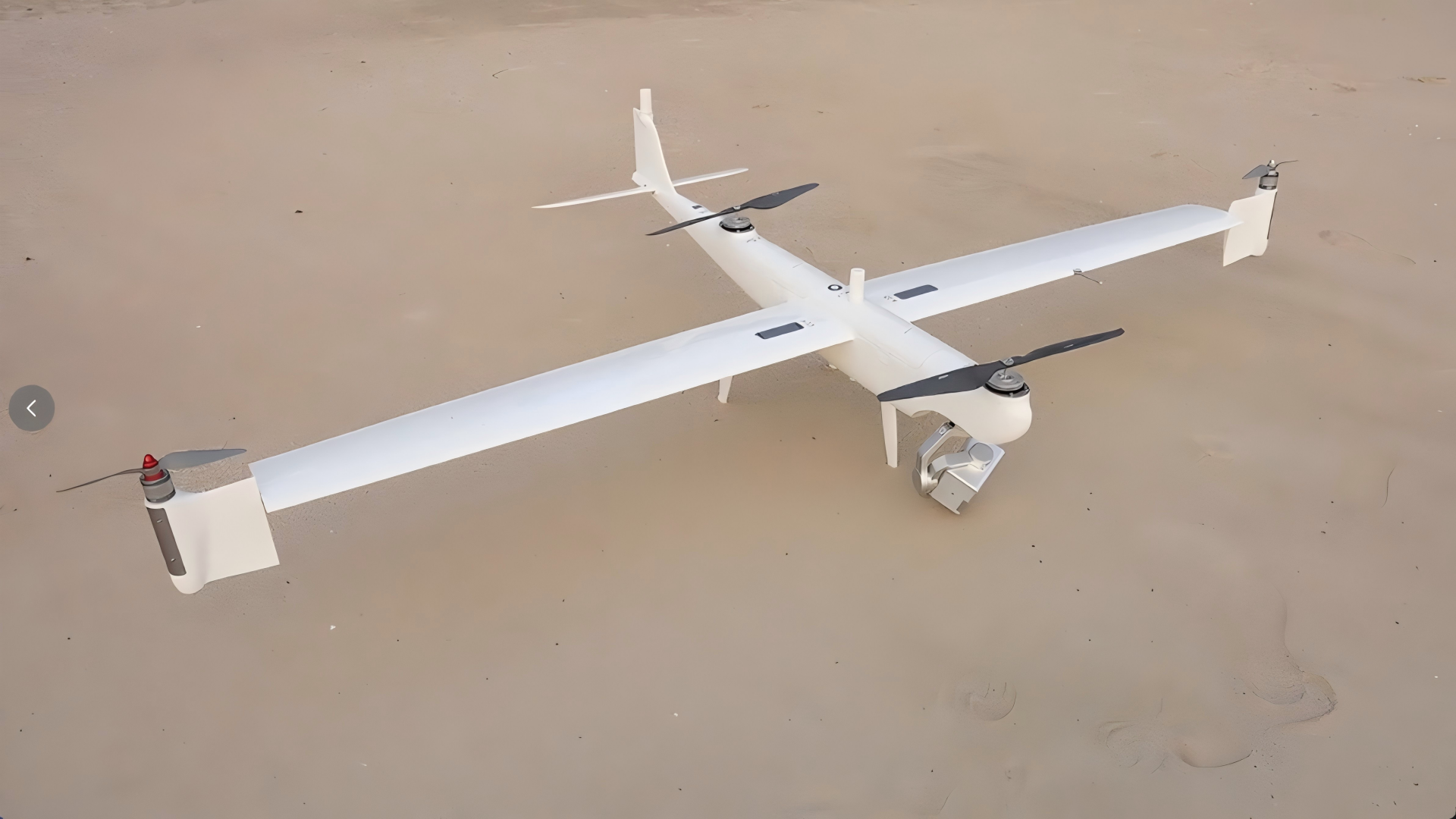

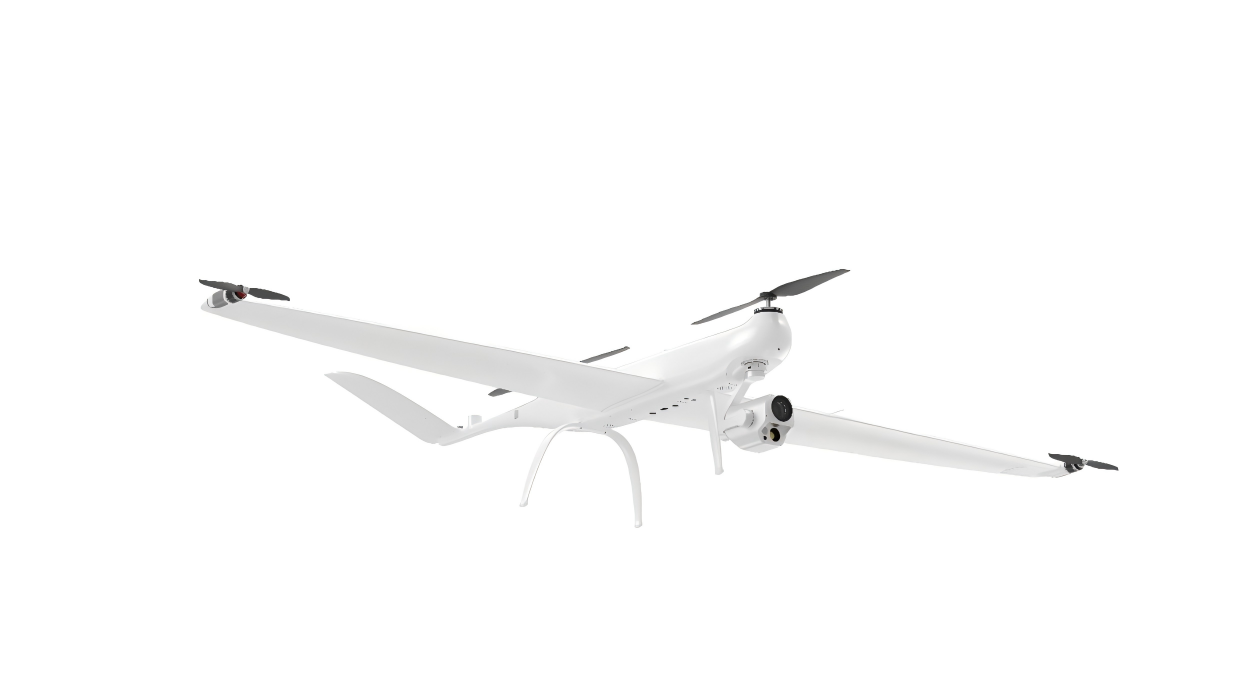

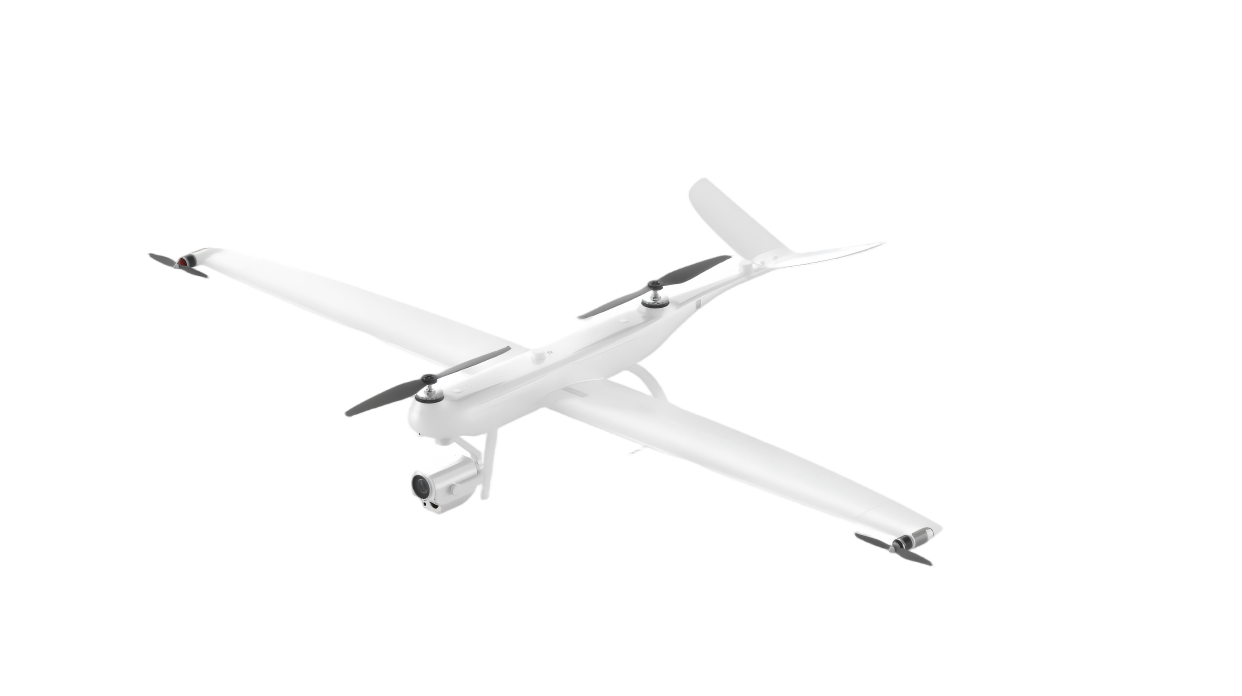

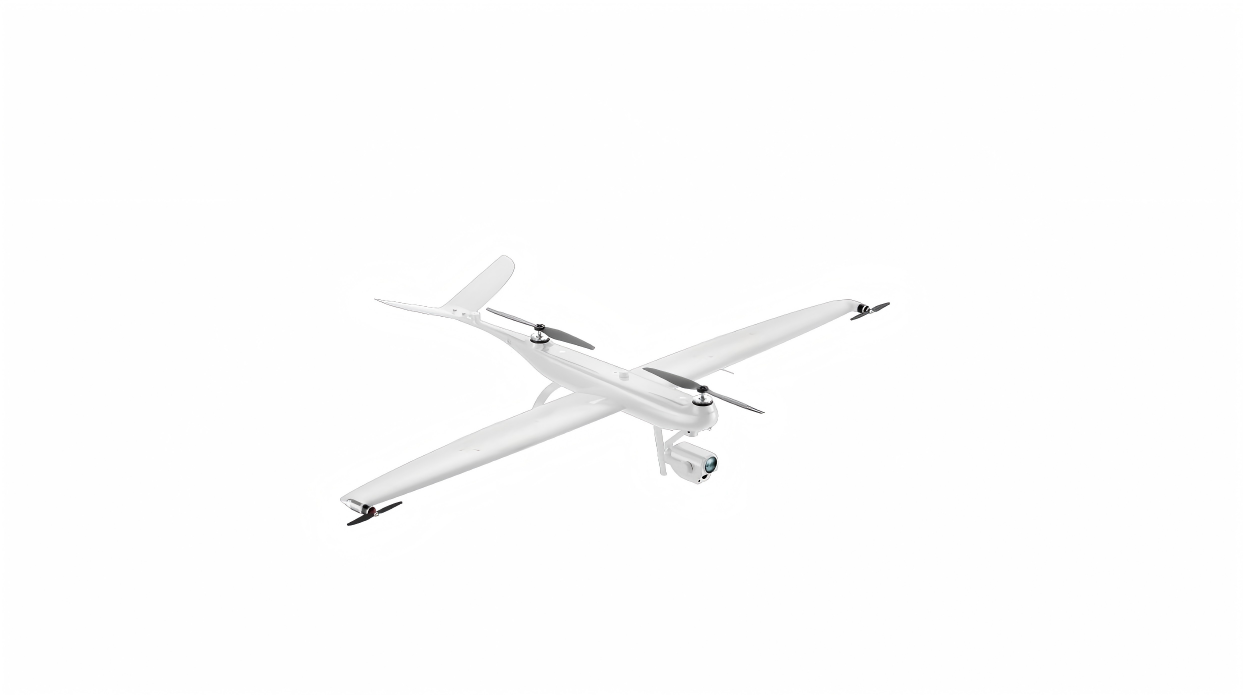

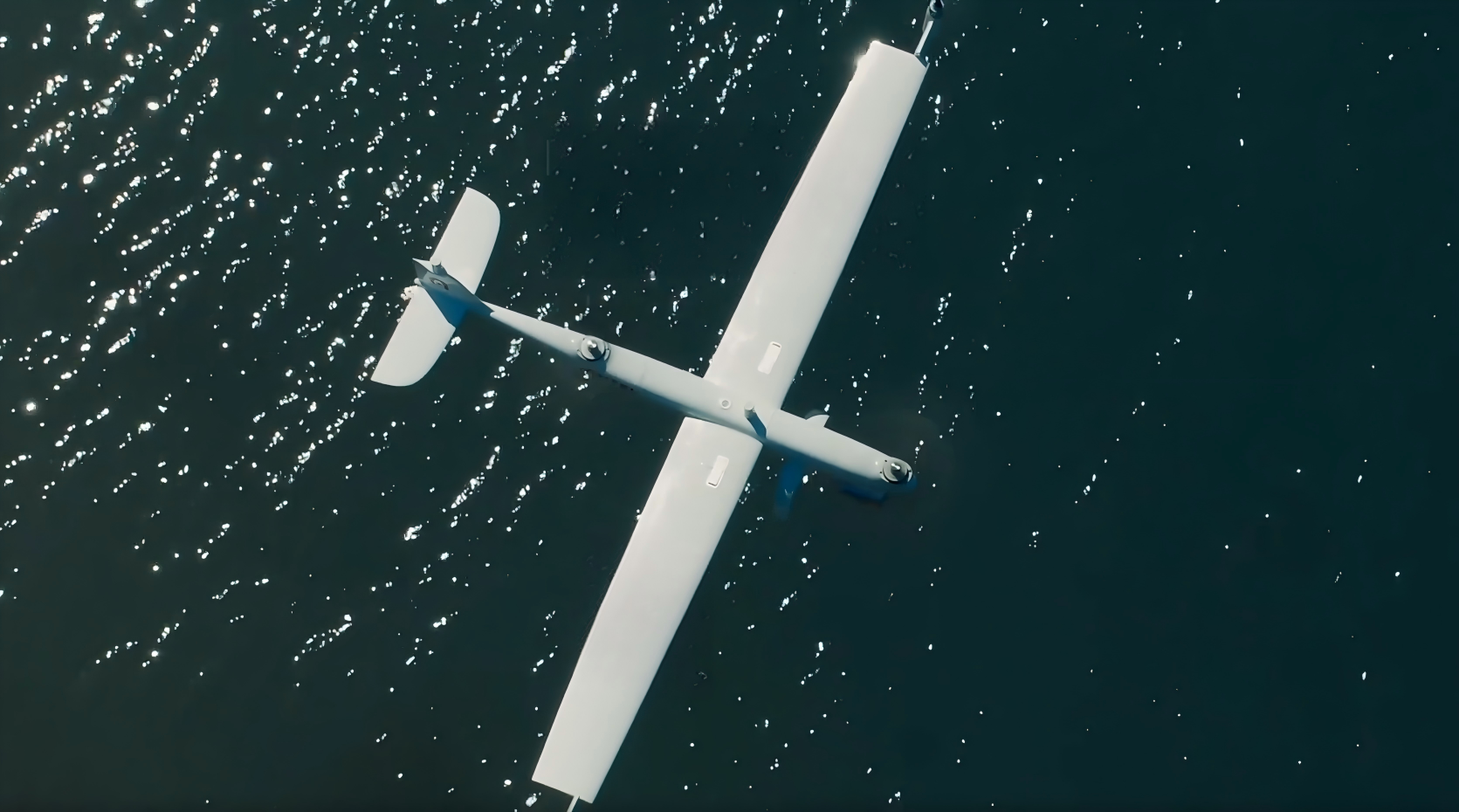

It is a next-generation tilt-rotor eVTOL (Vertical Takeoff and Landing) UAV designed to combine the hover efficiency of multirotors with the high speed and long range of fixed-wing aircraft.
If the connection to the ground station is lost and GNSS is available, it initiates automatic return-to-home. If GNSS is unavailable, the landing protection descends the drone automatically. Additionally, users can customize landing battery thresholds, and the UAV will calculate the optimal return timing dynamically.
This eVTOL features comprehensive multi-level redundancies across key systems, including critical sensors, battery systems, and communication buses, along with automated fallback and mode switching.
Yes, this UAV fully supports automated takeoff and landing procedures on moving platforms, making it ideal for marine or vehicle-mounted operations.
The UAV can carry an extra payload of up to 10 kg. It has a maximum flight time of 270 minutes with an empty payload, or up to 210 minutes when carrying a DG-T5 gimbal payload.
Thanks to its quick-release assembly configuration, the UAV can be fully assembled and deployed from transport state to takeoff in 10 minutes or less.
